Name: 340V 150AH Special Vehicle Battery With 50Ah VDA Module
Brand: Soundon
Price: 1 USD

Brand Name : Soundon

Model Number : SD-EV-019-340V150AH-02

Certification : CE, MSDS, ROHS,

Place of Origin : China

MOQ : 1

Price : Negotiable

Supply Ability : 50units / week

Delivery Time : 30 working days after payment

Packaging Details : wooden package

Voltage range : 340V

Capacity : 150Ah

Total energy : 51kWh

VDA module : 14.8V150AH

Waterproof Grade of Battery Box : IP66

Cooling Method : Liquid cooling

Dimension : 1585*1300*289mm

Contact Now

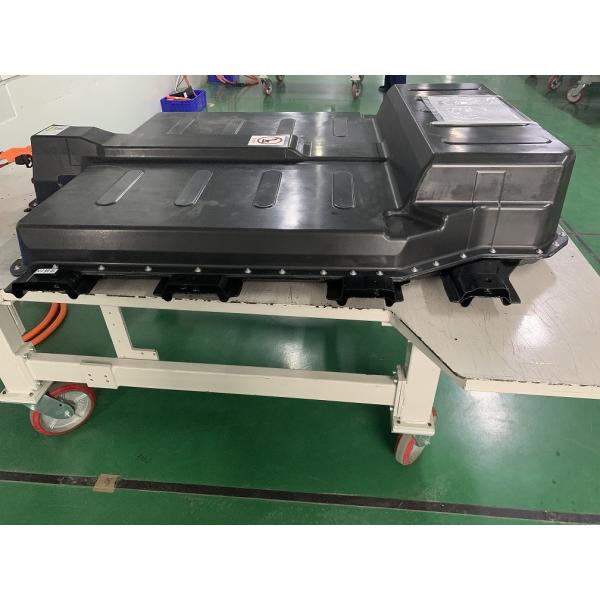

340V150AH Special Vehicle Battery With 50Ah VDA Module For Electric Passenger Vehicle

Content	Parameter
Voltage	340V
Energy(KWh)23±2℃,1/3C	51kWh
Capacity(Ah)23±2℃,1/3C	150Ah
Cell	3.65V50Ah
Configuration	3P92S
Recommended ambient temperature range(℃)	Discharge-20~55℃,Charge 0~55℃
Environmental Relative Humidity Recommended	5%~95%
Storage temperature	-20～25℃(3-6months,50%SOC) -20～45℃(1-3months,50%SOC) -20～60℃(less than 1 month,50%SOC)
Maximum Continuous Discharge voltage	404.8
Maximum Continuous Charging voltage	276
Insulation resistance factory test value(Ω)	≥20MΩ
Waterproof Grade of Battery Box	IP66
Cooling mode	Liquid cooling

14.8V150AH Module speicification

tem	Specification
Nominal Capacity	150Ah ,1C discharging(25±2℃) 152.4Ah,1/3C discharge (25±2℃)
Typical Capacity	153Ah ,1 C discharging(25±2℃)
Minimum Capacity	150Ah ,1C discharging(25±2℃)
Nominal Voltage	14.8V
Charge Ending voltage	max voltage 4.4V
Discharge Ending Voltage	0℃≤T(Temperature)≤55℃	to single cell min voltage 3.0V
	-20℃≤T(Temperature)≤0℃	to single cell min voltage 2.4V
Standard Charging Method	0.5C constant current charge to single cell max voltage 4.4V,then cut-off to current 0.05C with constant voltage charge
Max. Constant Charging Current	1C
Max. Pulse Charging Current	1.5C≤30S
Standard Discharging Current	25±2℃ 1/3C constant current discharge to single cell min voltage 3.0V
Max. Constant Discharging Current	1C
Max. Pulse Discharging Current	3C≤30S
Operating environment	Charging: 0℃~55℃, max.90%RH Discharging: -20℃~55℃, max.90%RH
Module Weight	10.3±0.3 kg
Energy Density	around215.0Wh/kg

Battery cell parameters

Product		50Ah cell
Cell Model		SEPNi-11100302P(pouched)
Chemicals		NCM/graphite
Suitable applications		Electric vehicles,hybrid electric vehicle
Nominal capacity		50AH
Nominal voltage		3.7V
Rated voltage range		3.0-4.4V
Working voltage range		3.0-4.35V
Working temperature range		-30℃～55℃(discharge);-20℃～55℃(Charge)
Storage temperature range		-30℃～55℃
Specific energy density		～260Wh/kg
Dimension (length × width × thickness)/mm		(302max)×(100max)×(11.6±0.2)
Standard	Size	Satisfy the size of VDA
	Performances	All tested parameters meets the requirements of national mandatory electrical and safety standards of GB/T 31484, GB/T 31485 and GB/T 31486,UN38.3

14.8V150AH Mass Production

340V 150AH Special Vehicle Battery With 50Ah VDA Module
